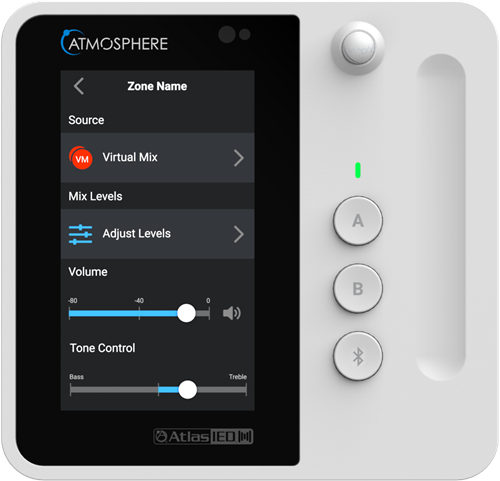

De AtlasIED C-T4BT is een geavanceerde wandcontroller voor het Atmosphere audio control system.
De controller beschikt over een 4,3-inch programmeerbaar touchscreen, capacitieve volumeregeling, programmeerbare actieknoppen en een geïntegreerde PIR-bewegingssensor.
De C-T4BT beschikt daarnaast over geïntegreerde Bluetooth-audio, waarmee gebruikers eenvoudig draadloos audio kunnen streamen naar het Atmosphere-systeem.
De C-T4BT wordt via CAT5e rechtstreeks aangesloten op een Atmosphere AZM-processor en ondersteunt daisy-chaining tot 305 meter.
Let op! 2-gang wanddoos nodig.
Specificaties
Bluetooth Standard V4.2
Audio Profile A2DP
Open Air Range Up to 100ft
Output Type Stereo (default) or Mono, configurable in AZM web GUI
LED Indicator Green: Paired
Red: Error
Blue (pulsing): Pairing mode
Blue (blinking): Locating mode
Yellow: Firmware updating
Dimensions (HxWxD) 5.3″ x 5.5” x 1.4″ (136mm x 141mm x 36mm)
Minimum Box Depth 1.8" (46mm)
Volume Slider Capacitive Touch Slider
Motion Sensor Type PIR
Motion Sensor Range Up to 30ft
Ambient Light Sensor Yes, automatic LCD/LED brightness
Custom Bluetooth Name Yes, definable in AZM web GUI
Compatibility Compatible with all Atmosphere AZM / AZMP system processors running software V4.5 or greater
