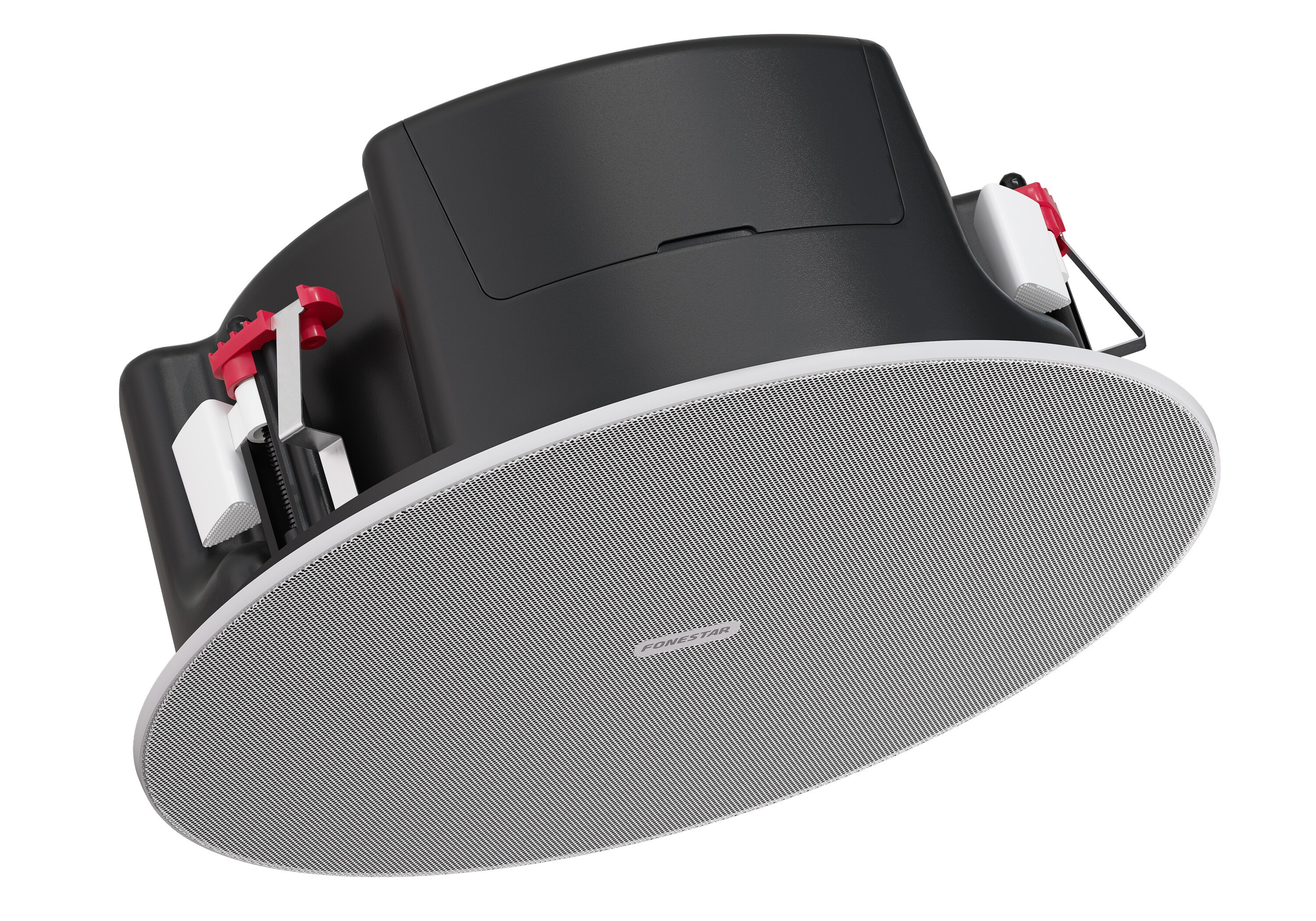

Fonestar SKY-8T-DOME

Ceiling loudspeaker with 100 V line transformer and low impedance.
Protective dome type back cover.
Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable grille. The logo can be removed and painted.
Fast connection terminals and high conductivity.
Junction box in the rear cover with inlet and outlet port.
Anti-fall system for installation assistance.
Hook for safety cable.
Stable, worm-gear ceiling brackets.
Installation in ceilings with limited space.
Protection against dust and water.

POWER:     30 W RMS, 40 W MAX.

SPEAKER:     Coaxial speaker.
8'' polypropylene woofer
1'' adjustable tweeter

RESPONSE:     90-20,000 Hz @ -10 dB
100-20,000 Hz @ -3 dB

IMPEDANCE:     30 W RMS@100 V (333 Ω)
15 W RMS@100 V/70 V (666 Ω/326 Ω)
7'5 W RMS@100 V / 70 V(1.333 Ω/ 653 Ω)
3'75 W RMS@100 V / 70 V(2.666 Ω/ 1.306 Ω)
1'87 W RMS@70 V (2.620 Ω)
Low Z: 8 Ω

SENSITIVITY:     90 dB @ 1 W/1 m

SOUND PRESSURE:     108 dB @ max. W/1m Continuous, 109 dB @ max. W/1m Peak

COVERAGE ANGLE::     90º@1kHz (-6 dB)

PROTECTIONS:     IP-65 in compliance with IEC 60529
EN ISO 9227:2006 Neutral Salt Spray Test

MATERIAL:     ABS (UV resistant)
Liquid painted aluminium grille

CONNECTORS:     Highly conductive quick-connect terminals
For cable cross-section 0.4 ~ 4 mm².
Junction box in back cover with inlet and outlet holes

SWITCH:     W selector in high Z and 8 Ω.
Accessible from the front.

OPERATION TEMPERATURE:     -20ºC ~ 70°C (48 h)

STORAGE TEMPERATURE:     10ºC ~ 40°C

MAXIMUM HUMIDITY:     95%

COLOUR:     White (RAL 9003)

DIMENSIONS:     Total loudspeaker: 306 mm Ø x 128 mm height
Grille section: 7 mm
Recessed height: 121 mm
Installation hole: 273 mm Ø
Maximum ceiling thickness: 30 mm

WEIGHT:     2.4 kg

ACCESSORIES:     Installation template

Website van de fabrikant: https://fonestar.com/en/sky-8t-dome/
